Raystar offers a versatile range of character OLED display modules for industrial and embedded applications that require clear, high-contrast information displays. Available in COB and COG structures, the range covers sizes from 1.2″ to 5.85″ with character configurations from 8×2 through to 40×2.
With wide viewing angles of up to 175°, fast response times, and interface options including 6800, 8080, SPI, and I2C, Raystar character OLEDs offer flexible integration across a variety of embedded systems. Available in multiple display colours, the range suits industrial instrumentation, measurement equipment, POS systems and other applications requiring dependable character displays.
Products

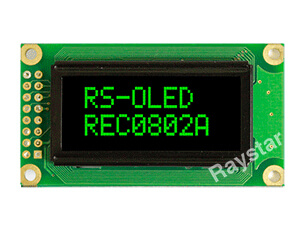

1.2 inch 8×2 COB Character Display
Model No. REC000802A
Structure : COB
Size (Diagonal) : 1.2 inch
Characters × Lines : 8 Characters × 2 Lines
Module Dimension : 58×32 mm
Active Area : 28.16×11.86 mm
Interface : 6800,8080,SPI
Viewing Area : 38×16 mm
IC : RS0010-TX

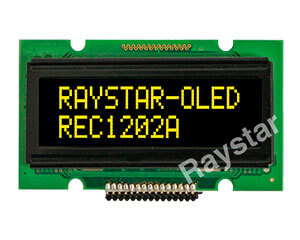

Model No. REC001202A
Structure : COB
Size (Diagonal) : 1.6 inch
Characters × Lines : 12 Characters × 2 Lines
Module Dimension : 55.7×32 mm
Active Area : 38.95×11.8 mm
Interface : 6800,8080,SPI
Viewing Area : 46×14.5 mm
IC : RS0010-TX

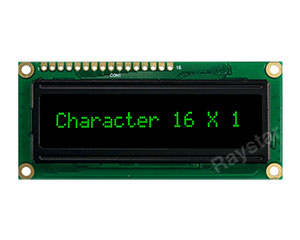

Model No. REC001601B
Structure : COB
Size (Diagonal) : 2.25 inch
Characters × Lines : 16 Characters × 1 Line
Module Dimension : 80×36 mm
Active Area : 56.95×5.55 mm
Interface : 6800,8080,SPI
Viewing Area : 66×16 mm
IC : RS0010-TX

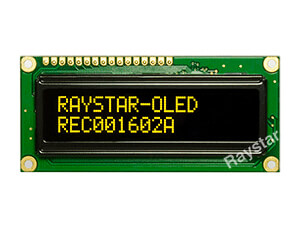

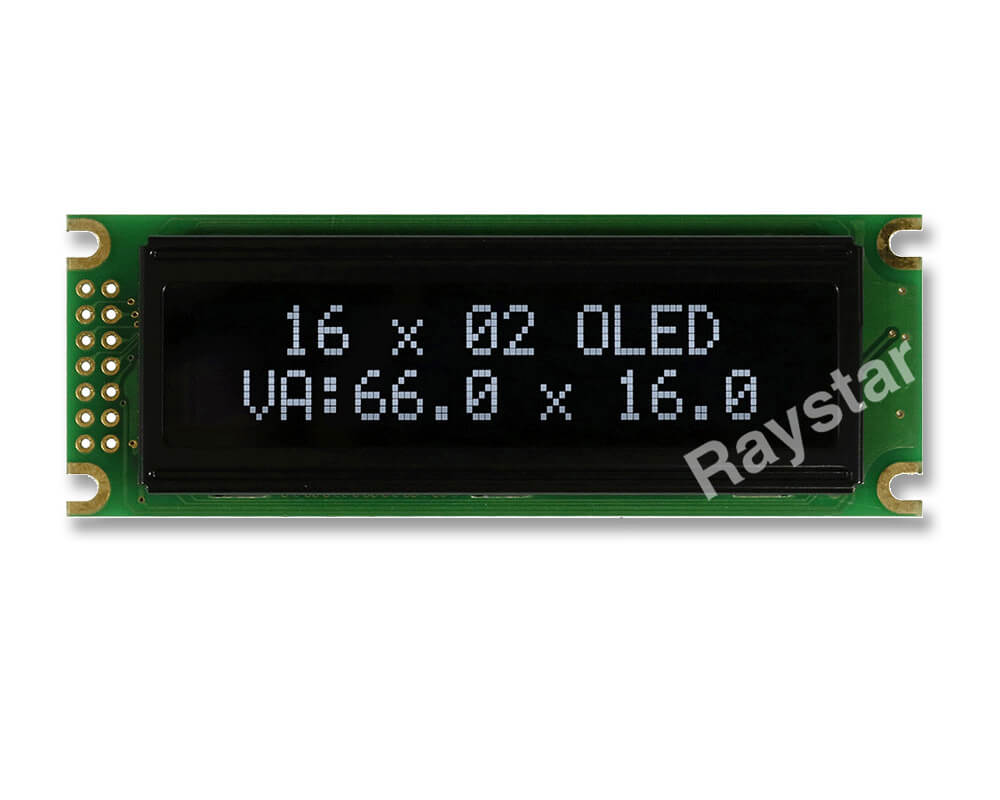

Model No. REC001602A
Structure : COB
Size (Diagonal) : 2.29 inch
Characters × Lines : 16 Characters × 2 Lines
Module Dimension : 80×36 mm
Active Area : 56.95×11.85 mm
Interface : 6800,8080,SPI
Viewing Area : 66×16 mm
IC : RS0010-TX

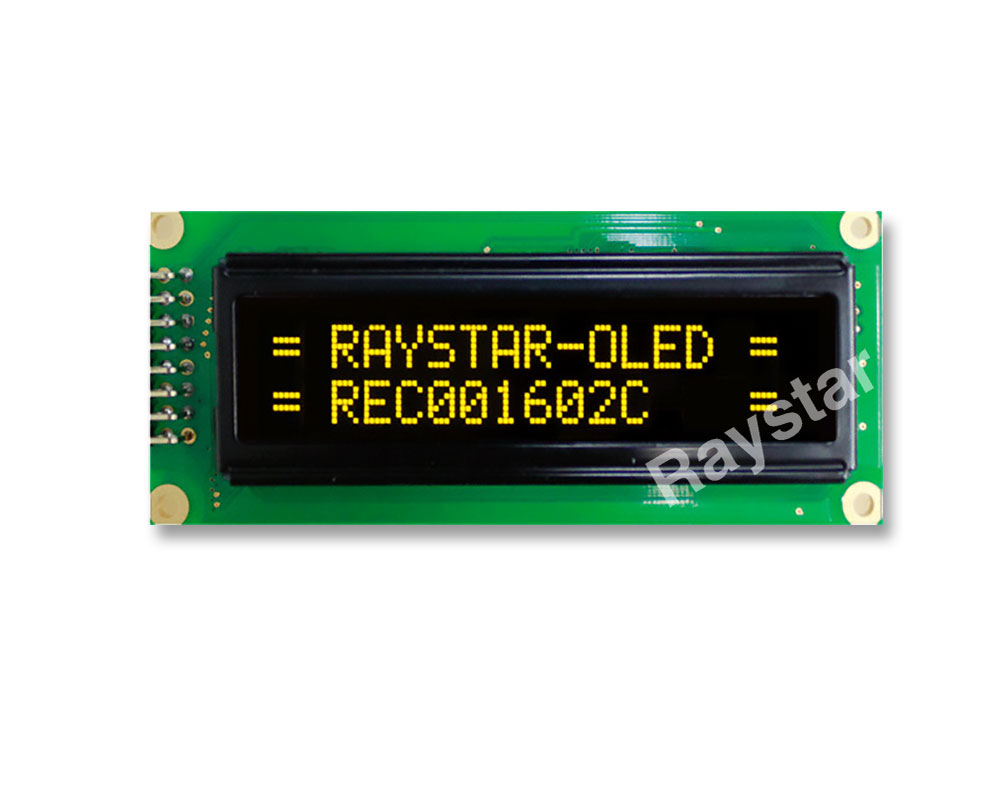

2.29 inch 16×2 Character Display
Model No. REC001602C
Structure : COB
Size (Diagonal) : 2.29 inch
Characters × Lines : 16 Characters × 2 Lines
Module Dimension : 85×36 mm
Active Area : 56.95×11.85 mm
Interface : 6800,8080,SPI
Viewing Area : 66×16 mm
IC : RS0010-TX
Model No. REC001602D
Structure : COB
Size (Diagonal) : 2.29 inch
Characters × Lines : 16 Characters × 2 Lines
Module Dimension : 85×30 mm
Active Area : 56.95×11.85 mm
Interface : 6800,8080
Viewing Area : 66×16 mm
IC : RS0010-TX

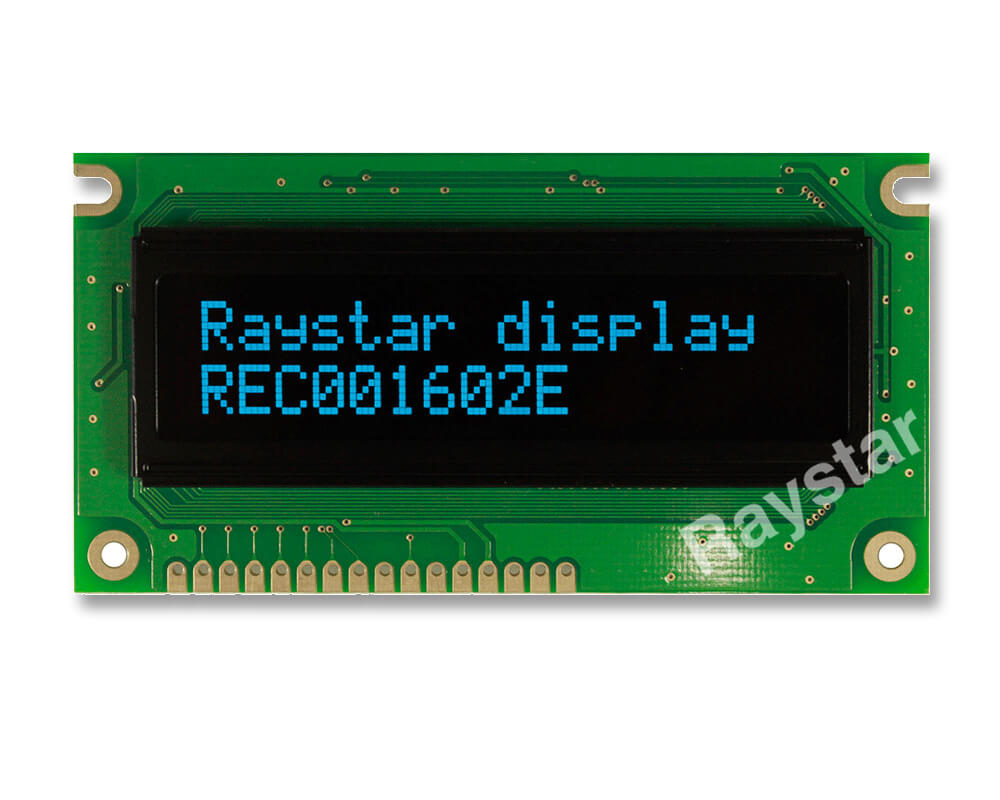

Model No. REC001602E
Structure : COB
Size (Diagonal) : 2.29 inch
Characters × Lines : 16 Characters × 2 Lines
Module Dimension : 84×44 mm
Active Area : 56.95×11.85 mm
Interface : 6800,8080,SPI
Viewing Area : 66×16 mm
IC : RS0010-TX

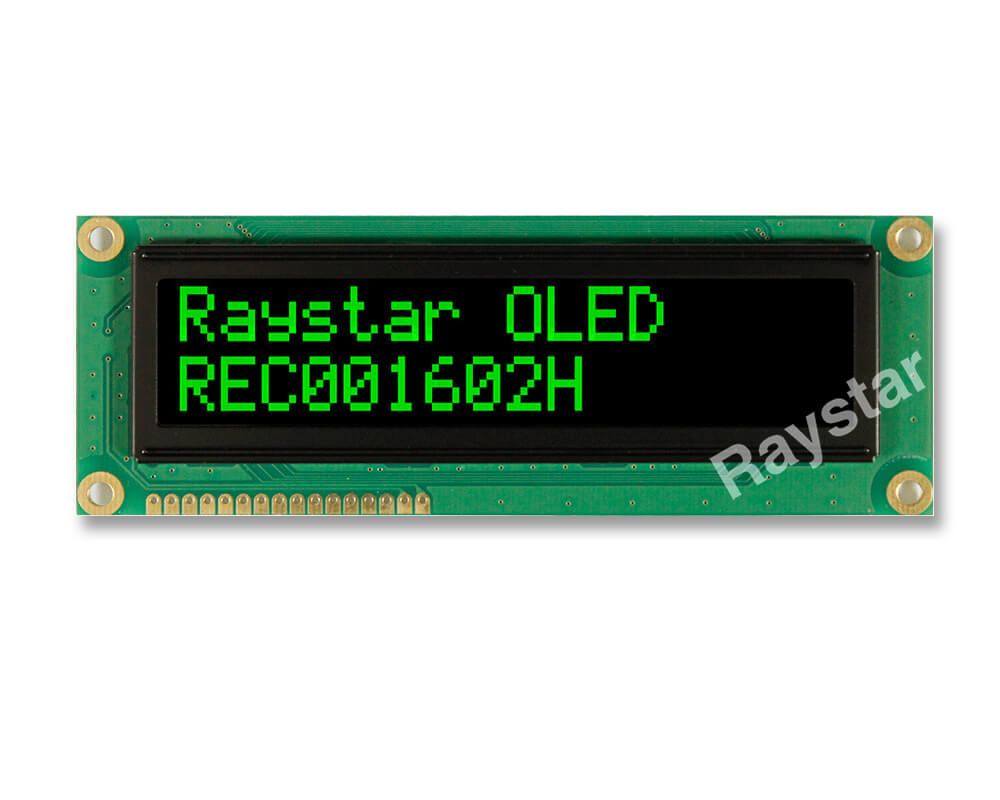

Model No. REC001602H
Structure : COB
Size (Diagonal) : 3.67 inch
Characters × Lines : 16 Characters × 2 Lines
Module Dimension : 122×44 mm
Active Area : 91.14×18.98 mm
Interface : 6800,8080,SPI
Viewing Area : 98×21 mm
IC : RS0010-TX

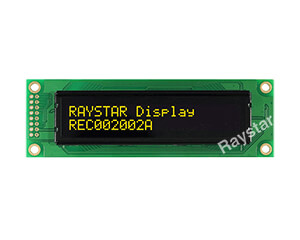

Model No. REC002002A
Structure : COB
Size (Diagonal) : 3.08 inch
Characters × Lines : 20 Characters × 2 Lines
Module Dimension : 116×37 mm
Active Area : 77.3×11.85 mm
Interface : 6800,8080,SPI
Viewing Area : 85×18.6 mm
IC : RS0010-TX

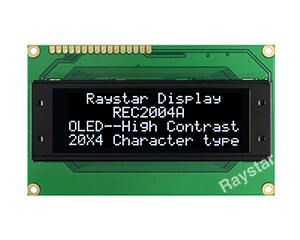

Model No. REC002004A
Structure : COB
Size (Diagonal) : 2.88 inch
Characters × Lines : 20 Characters × 4 Lines
Module Dimension : 98×60 mm
Active Area : 70.16×20.95 mm
Interface : 6800,8080,SPI
Viewing Area : 77×25.2 mm
IC : RS0010-TX

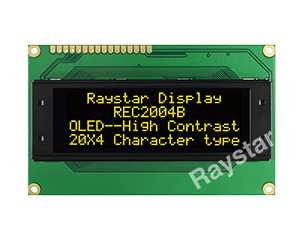

Character Display 20×4 ZIF FPC
Model No. REC002004B
Structure : COB
Size (Diagonal) : 2.88 inch
Characters × Lines : 20 Characters × 4 Lines
Module Dimension : 98×60 mm
Active Area : 70.16×20.95 mm
Interface : 6800,8080,SPI
Viewing Area : 77×25.2 mm
IC : RS0010-TX

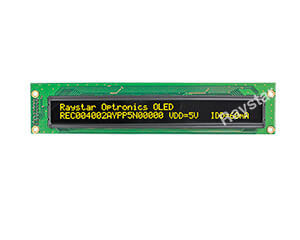

Model No. REC004002A
Structure : COB
Size (Diagonal) : 5.85 inch
Characters × Lines : 40 Characters × 2 Lines
Module Dimension : 182×38.5 mm
Active Area : 148.13×11.85 mm
Interface : 6800,8080,SPI
Viewing Area : 154.4×16.5 mm
IC : RS0010-TX

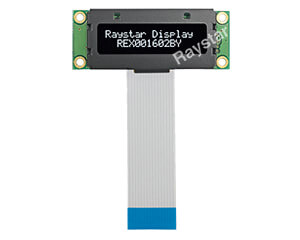

1.23 inch 16×2 COG+PCB Display
Model No. REX001602B
Structure : COG+PCB
Size (Diagonal) : 1.23 inch
Characters × Lines : 16 Characters × 2 Lines
Module Dimension : 53×20 mm
Active Area : 30.69×5.94 mm
Interface : 6800,8080,SPI,I2C
Viewing Area : 36×10 mm
IC : RS0012

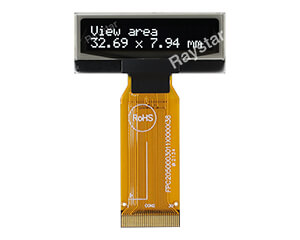

Model No. REX001602H
Structure : COG
Size (Diagonal) : 1.23 inch
Characters × Lines : 16 Characters × 2 Lines
Module Dimension : 39.1×15.8 mm
Active Area : 30.69×5.94 mm
Interface : 6800,8080,SPI,I2C
Viewing Area : 32.69×7.94 mm
IC : RS0012
