Raystar offers a comprehensive range of monochrome graphic LCD modules designed for industrial and embedded applications requiring clear, reliable graphical information. Available in sizes from 1.15″ to 5.67″, the range includes multiple resolutions and COB, COG and COG+PCB construction options to support different system requirements.
With STN and FSTN technologies and LED backlighting, plus interface options including 6800, 8080, SPI and I2C, Raystar graphic LCDs integrate flexibly into new and existing designs. The range is well suited to industrial instrumentation, automation equipment, medical devices, POS systems and other embedded applications requiring dependable monochrome graphics.

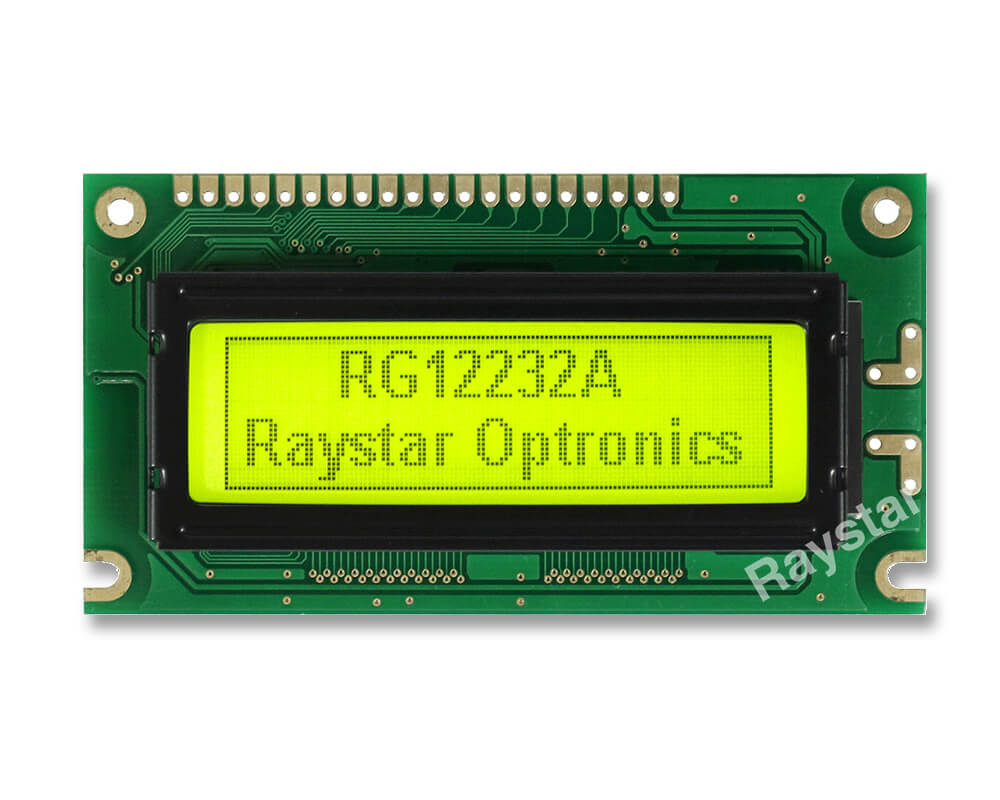

Structure COB
Size (Diagonal) 2.20 inch
Dot Matrix / Resolution 122 × 32 dots
Module Dimension 84.0 × 44.0 × 13.7 (Max) mm
Viewing Area 60.0 × 18.0 mm
Active Area 53.64 × 15.64 mm
Mounting Hole 79.0 × 36.0 mm
Dot / Pixel Size 0.44 × 0.49 mm
Dot / Pixel Pitch 0.40 × 0.45 mm

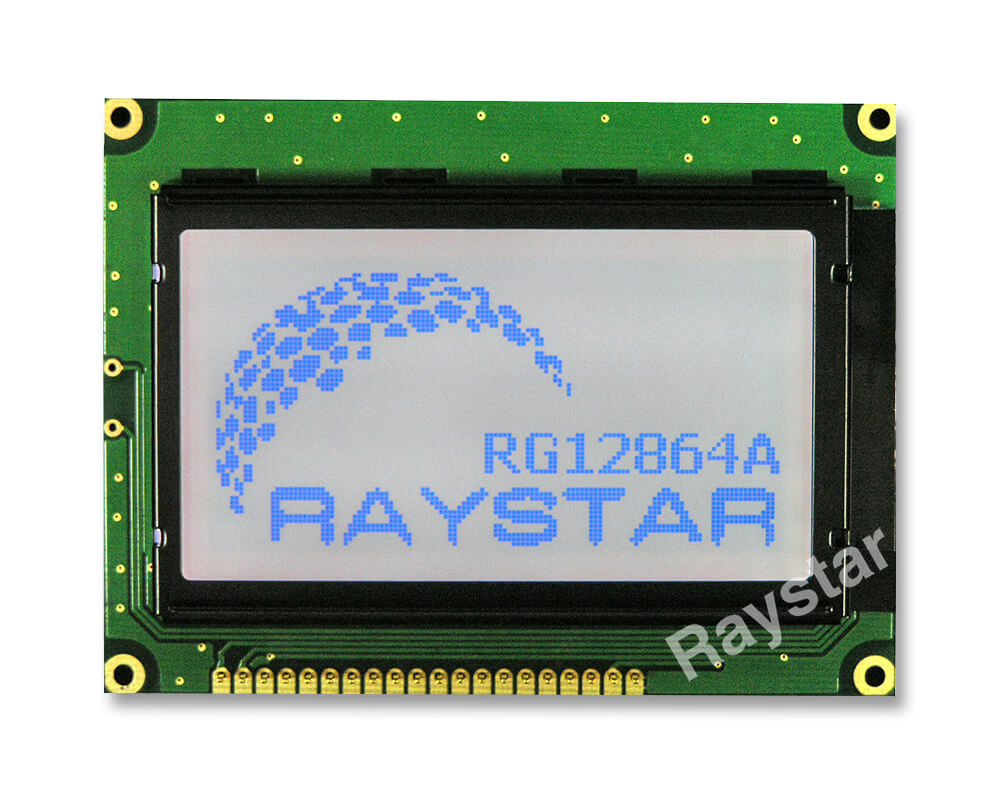

Structure COB
Size (Diagonal) 2.93 inch
Dot Matrix / Resolution 128 × 64 dots
Module Dimension 93.0 × 70.0 × 13.6 (MAX) mm
Viewing Area 72.0 × 40.0 mm
Active Area 66.52 × 33.24 mm
Mounting Hole 88.0 × 65.0 mm
Dot / Pixel Size 0.48 × 0.48 mm
Dot / Pixel Pitch 0.52 × 0.52 mm

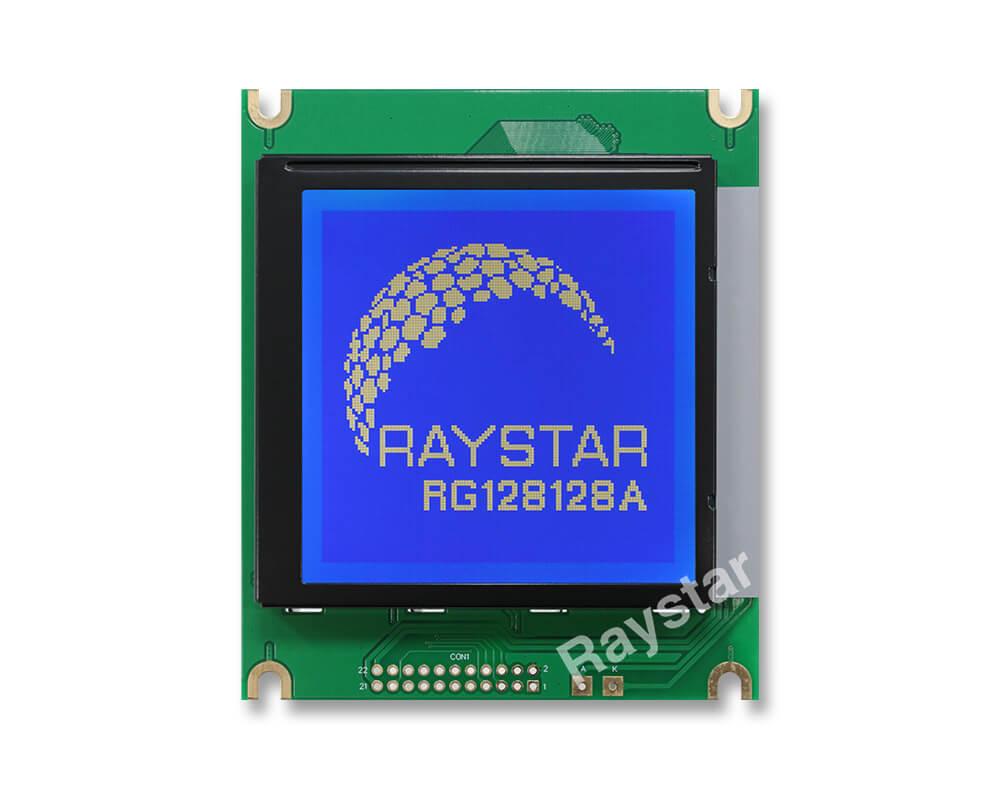

Structure COB
Size (Diagonal) 3.06 inch
Dot Matrix / Resolution 128 × 128 dots
Module Dimension 85.0 × 100.0 × 14.5 mm
Viewing Area 62.0 × 62.0 mm
Active Area 55.01 × 55.01 mm
Mounting Hole 75.0 × 94.0 mm
Dot / Pixel Size 0.40 × 0.40 mm
Dot / Pixel Pitch 0.43 × 0.43 mm

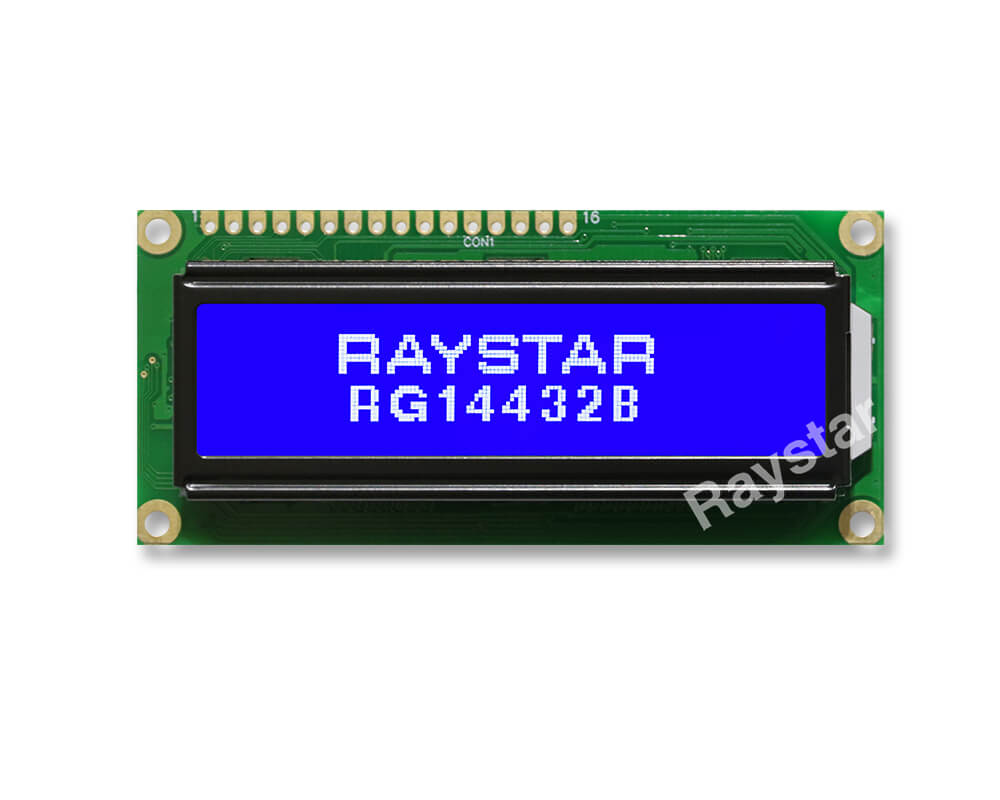

Structure COB
Size (Diagonal) 2.44 inch
Dot Matrix / Resolution 144 × 32 dots
Module Dimension 80.0 × 36.0 × 13.2 (MAX) mm
Viewing Area 66.0 × 16.0 mm
Active Area 60.44 × 13.4 mm
Mounting Hole 75.0 × 31.0 mm
Dot / Pixel Size 0.38 × 0.38 mm
Dot / Pixel Pitch 0.42 × 0.42 mm
Structure COB
Size (Diagonal) 3.85 inch

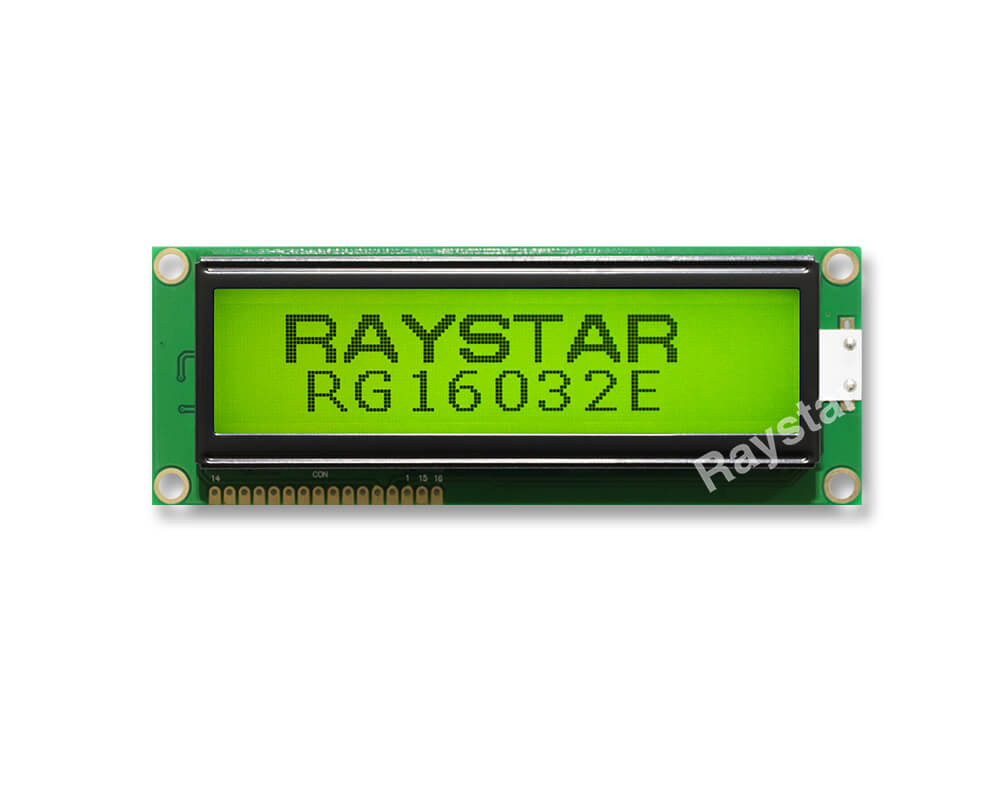

Dot Matrix / Resolution 160 × 32 dots
Module Dimension 122.0 × 44.0 × 13.6 mm
Viewing Area 99.0 × 24.0 mm
Active Area 95.95 × 19.15 mm
Mounting Hole 115.0 × 37.0 mm
Dot / Pixel Size 0.55 × 0.55 mm
Dot / Pixel Pitch 0.60 × 0.60 mm
Structure COB
Size (Diagonal) 2.96 inch

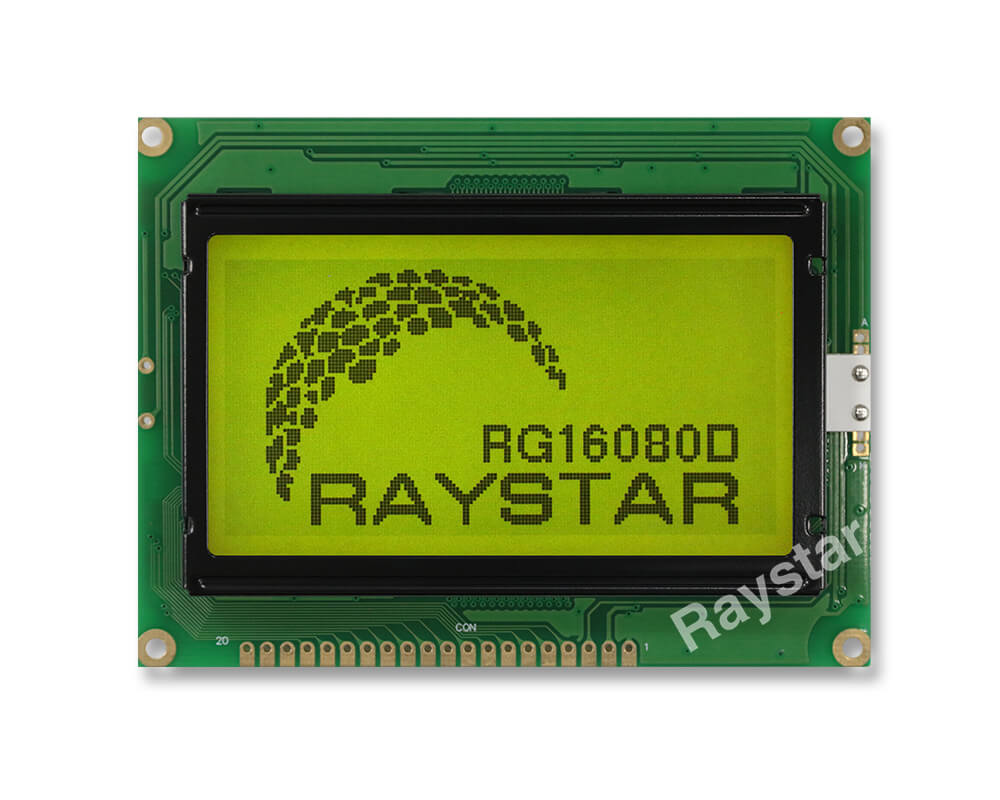

Dot Matrix / Resolution 160 × 80 dots
Module Dimension 93.0 × 70.0 × 13.6 mm
Viewing Area 72.0 × 40.0 mm
Active Area 67.17 × 33.57 mm
Mounting Hole 88.0 × 65.0 mm
Dot / Pixel Size 0.39 × 0.39 mm
Dot / Pixel Pitch 0.42 × 0.42 mm
Structure COB
Size (Diagonal) 4.84 inch

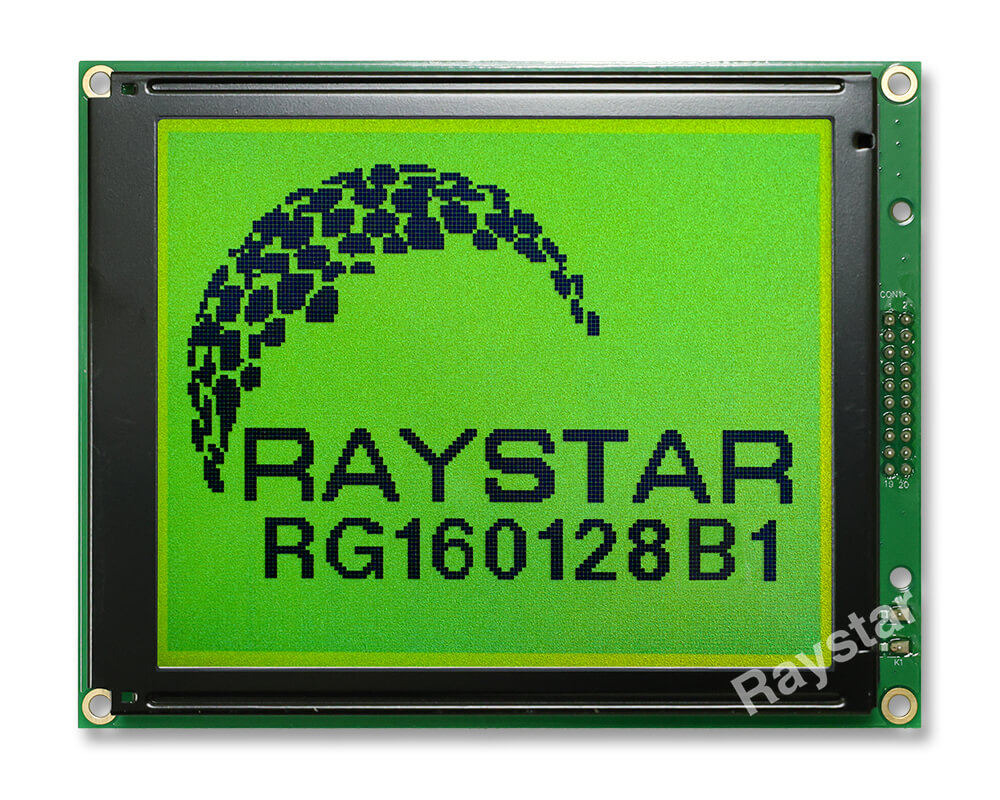

Dot Matrix / Resolution 160 × 128 dots
Module Dimension 129.0 × 102.0 × 16.5 mm
Viewing Area 101.0 × 82.0 mm
Active Area 95.96 × 76.76 mm
Mounting Hole 122.0 × 96.2 mm
Dot / Pixel Size 0.56 × 0.56 mm
Dot / Pixel Pitch 0.60 × 0.60 mm

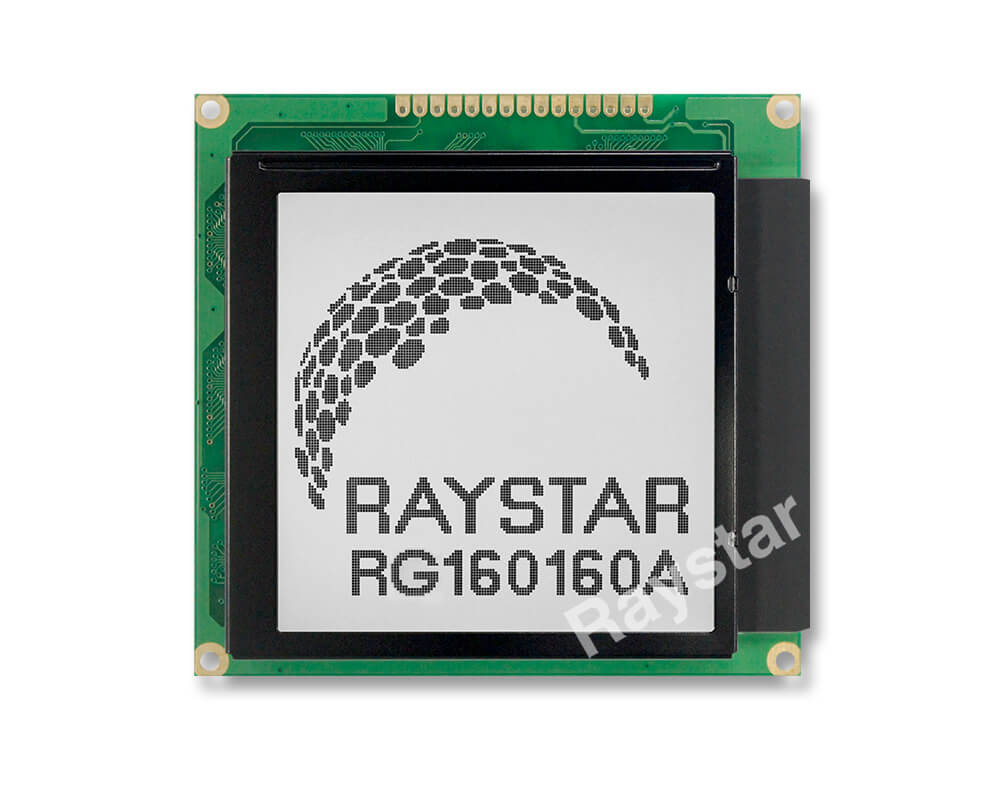

Structure COB
Size (Diagonal) 3.38 inch
Dot Matrix / Resolution 160 × 160 dots
Module Dimension 89.2 × 85.0 × 14.5 (MAX) mm
Viewing Area 62.0 × 62.0 mm
Active Area 60.78 × 60.78 mm
Mounting Hole 84.2 × 80.0 mm
Dot / Pixel Size 0.36 × 0.36 mm
Dot / Pixel Pitch 0.38 × 0.38 mm

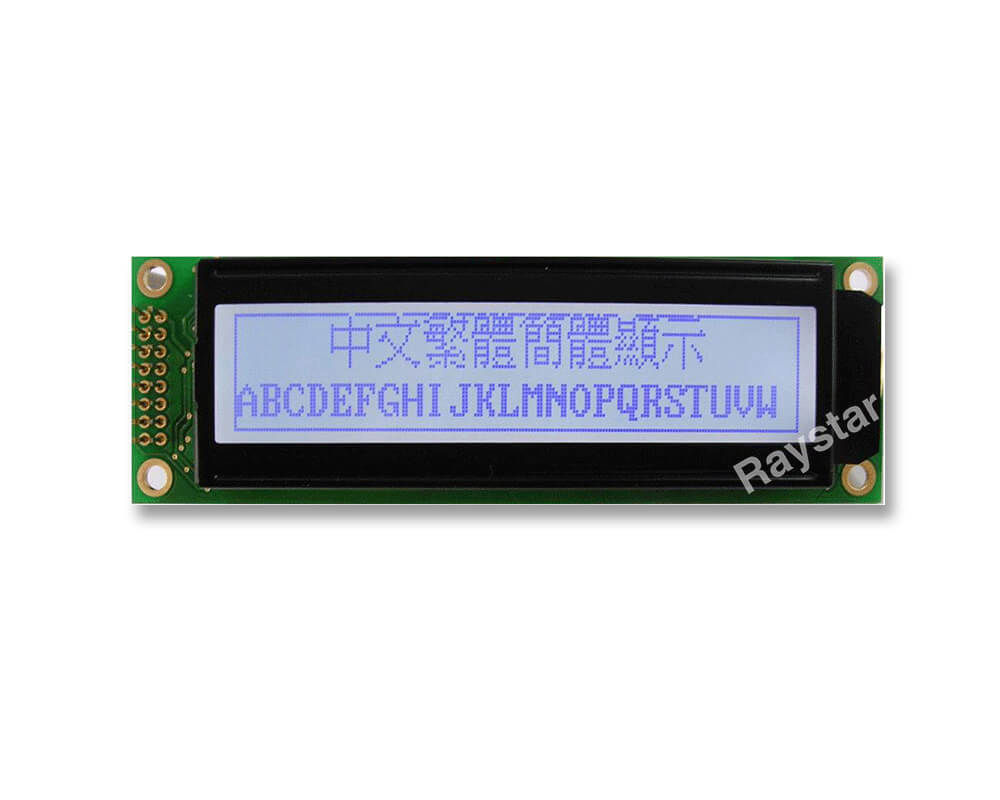

Structure COB
Size (Diagonal) 3.23 inch
Dot Matrix / Resolution 192 × 32 dots
Module Dimension 116.0 × 37.0 × 13.9 (MAX) mm
Viewing Area 85.0 × 18.6 mm
Active Area 80.6 × 15.96 mm
Mounting Hole 108.0 × 29.0 mm
Dot / Pixel Size 0.38 × 0.46 mm
Dot / Pixel Pitch 0.42 × 0.50 mm
Structure COB
Size (Diagonal) 3.98 inch

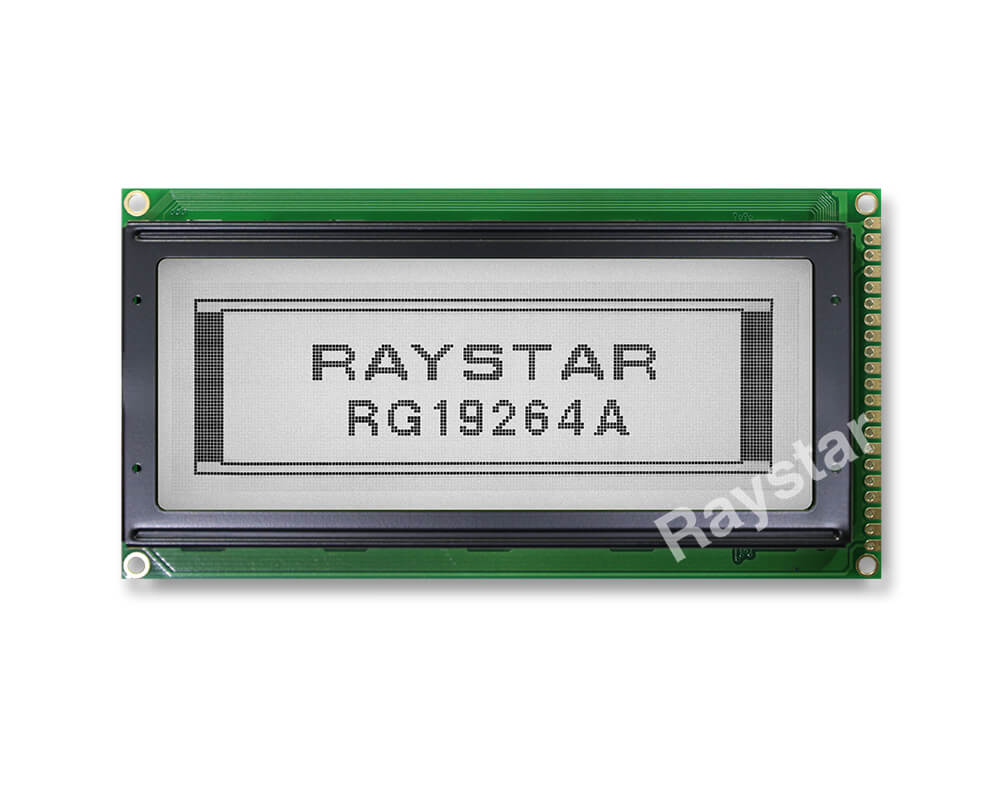

Dot Matrix / Resolution 192 × 64 dots
Module Dimension 120.0 × 62.0 × 12.9 mm
Viewing Area 102.0 × 39.0 mm
Active Area 96.0 × 32.0 mm
Mounting Hole 115.0 × 57.0 mm
Dot / Pixel Size 0.46 × 0.46 mm
Dot / Pixel Pitch 0.50 × 0.50 mm
Structure COB
Size (Diagonal) 3.36 inch

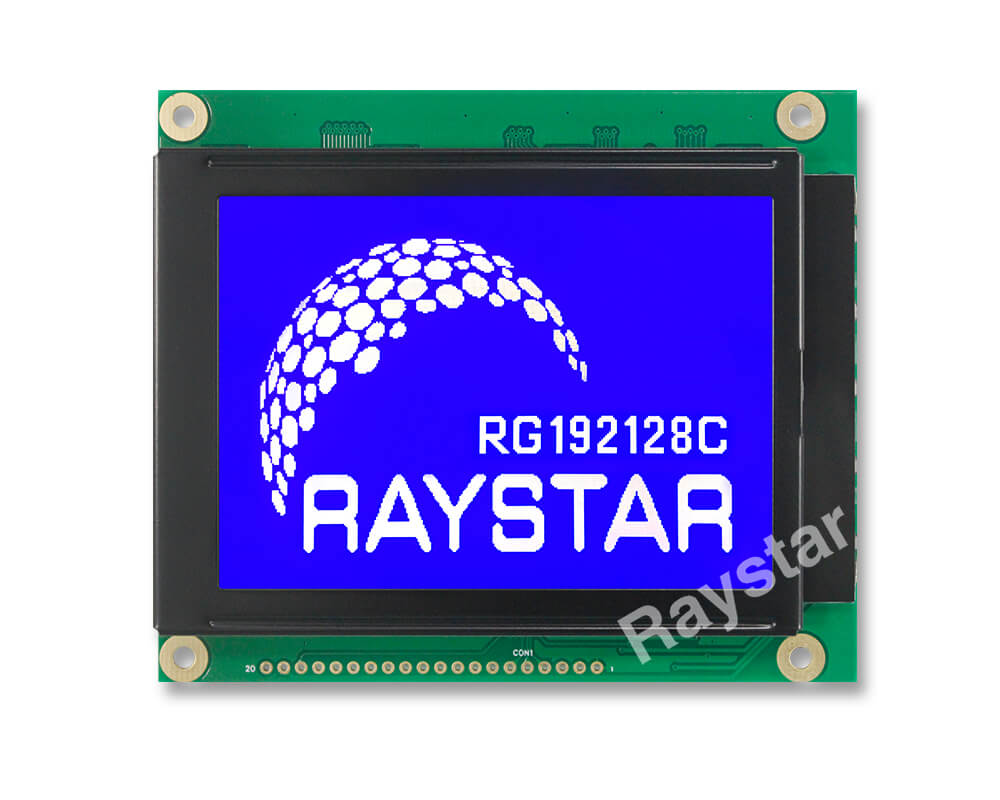

Dot Matrix / Resolution 192 × 128 dots
Module Dimension 102.3 × 86.0 × 12.2 mm
Viewing Area 78.5 × 55.0 mm
Active Area 71.02 × 47.34 mm
Mounting Hole 90.0 × 78.0 mm
Dot / Pixel Size 0.35 × 0.35 mm
Dot / Pixel Pitch 0.37 × 0.37 mm

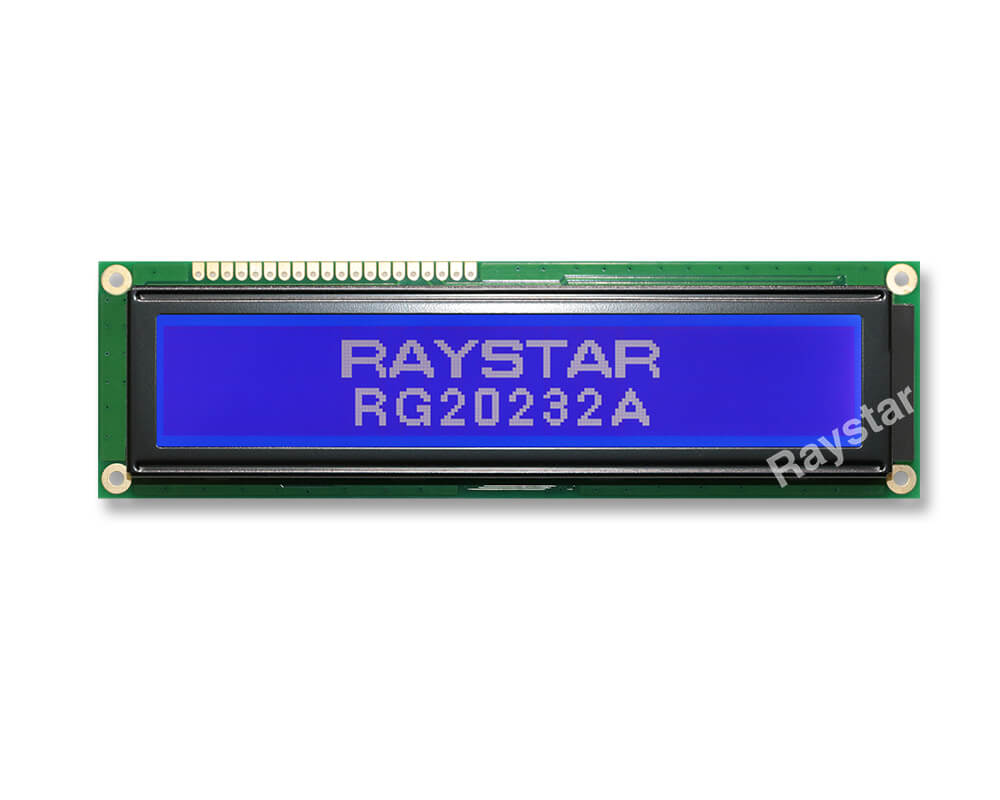

Structure COB
Size (Diagonal) 4.75 inch
Dot Matrix / Resolution 202 × 32 dots
Module Dimension 146.0 × 43.0 × 13.7 (Max) mm
Viewing Area 123.0 × 23.0 mm
Active Area 119.16 × 18.86 mm
Mounting Hole 139.0 × 36.0 mm
Dot / Pixel Size 0.57 × 0.57 mm
Dot / Pixel Pitch 0.59 × 0.59 mm
Structure COB
Size (Diagonal) 5.18 inch

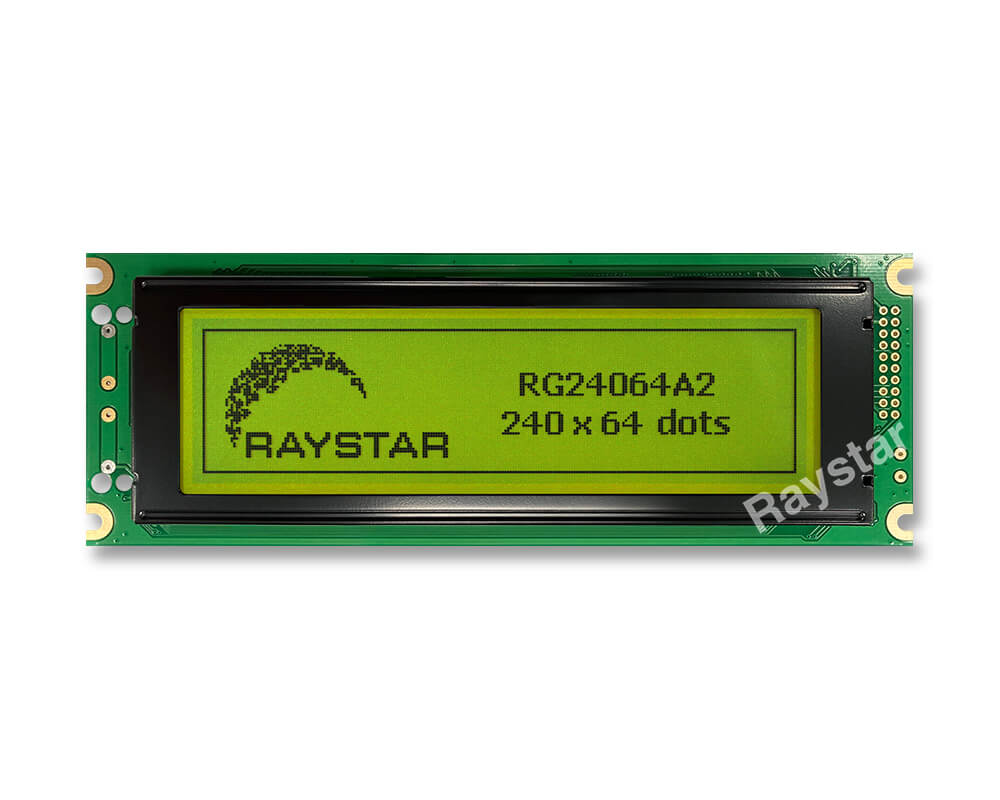

Dot Matrix / Resolution 240 × 64 dots
Module Dimension 180.0 × 65.0 × 12.3 mm
Viewing Area 133.0 × 39.0 mm
Active Area 127.16 × 33.88 mm
Mounting Hole 176.0 × 54.0 mm
Dot / Pixel Size 0.49 × 0.49 mm
Dot / Pixel Pitch 0.53 × 0.53 mm
Structure COB
Size (Diagonal) 4.82 inch

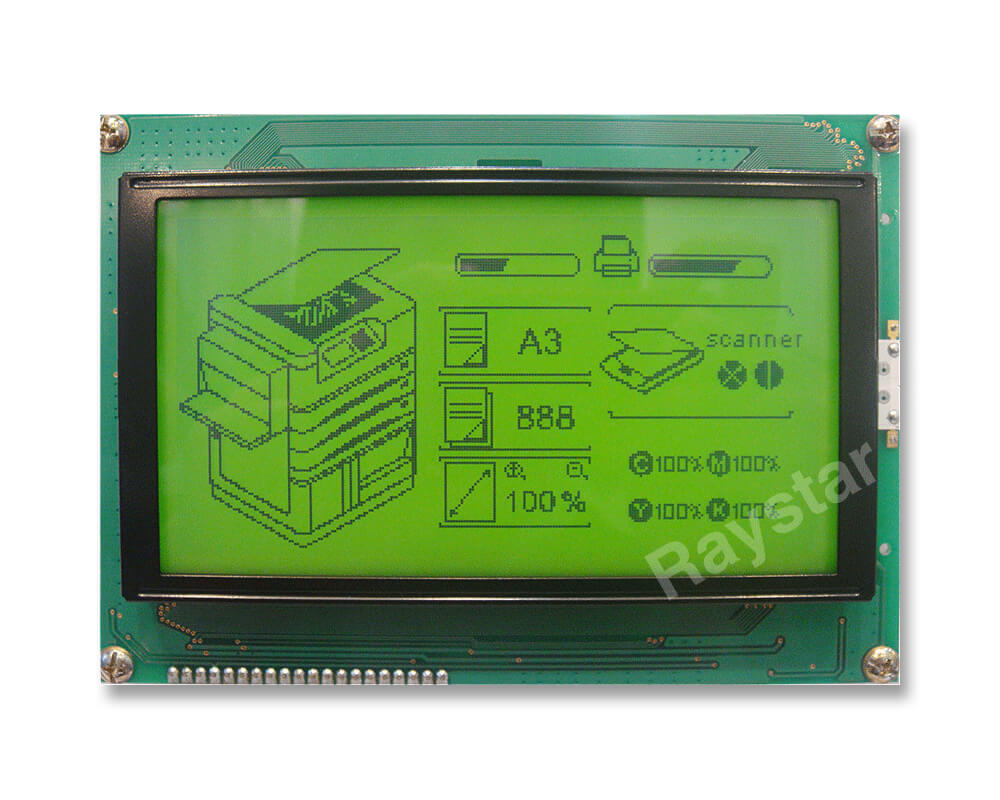

Dot Matrix / Resolution 240 × 128 dots
Module Dimension 144.0 × 104.0 × 14.3 mm
Viewing Area 114.0 × 64.0 mm
Active Area 107.98 × 57.58 mm
Mounting Hole 138.0 × 97.0 mm
Dot / Pixel Size 0.43 × 0.43 mm
Dot / Pixel Pitch 0.45 × 0.45 mm

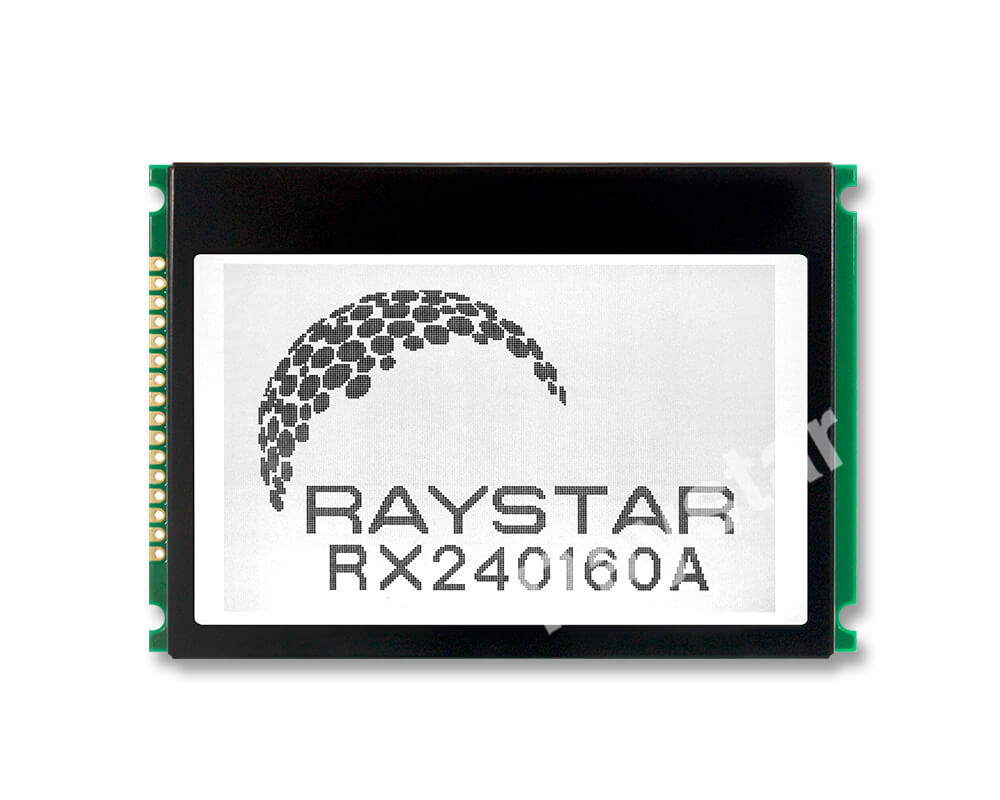

Structure COG+PCB
Size (Diagonal) 3.24 inch
Dot Matrix / Resolution 240 × 160 dots
Module Dimension 93.0 × 64.2 × 9.8 mm
Viewing Area 78.5 × 47.5 mm
Active Area 69.58 × 43.98 mm
Dot / Pixel Size 0.27 × 0.255 mm
Dot / Pixel Pitch 0.29 × 0.275 mm
Structure COG+PCB
Size (Diagonal) 2.93 inch

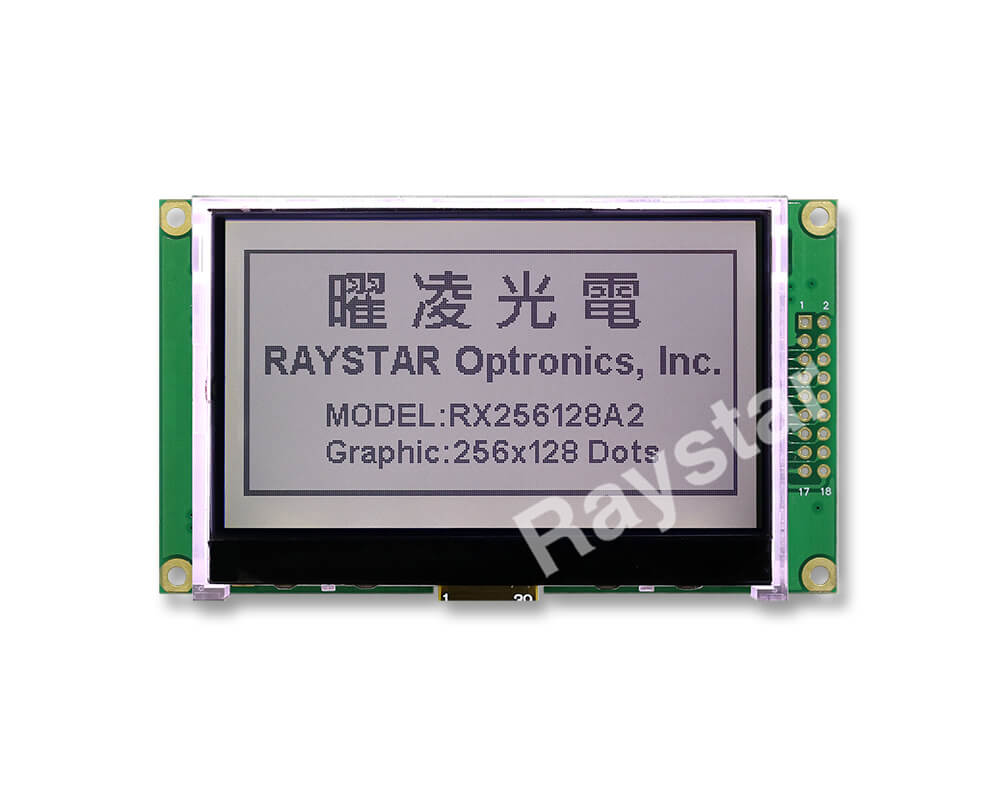

Dot Matrix / Resolution 256 × 128 dots
Module Dimension 93.0 × 54.0 × 9.5 mm
Viewing Area 70.7 × 38.8 mm
Active Area 66.54 × 33.26 mm
Dot / Pixel Size 0.24 × 0.24 mm
Dot / Pixel Pitch 0.26 × 0.26 mm

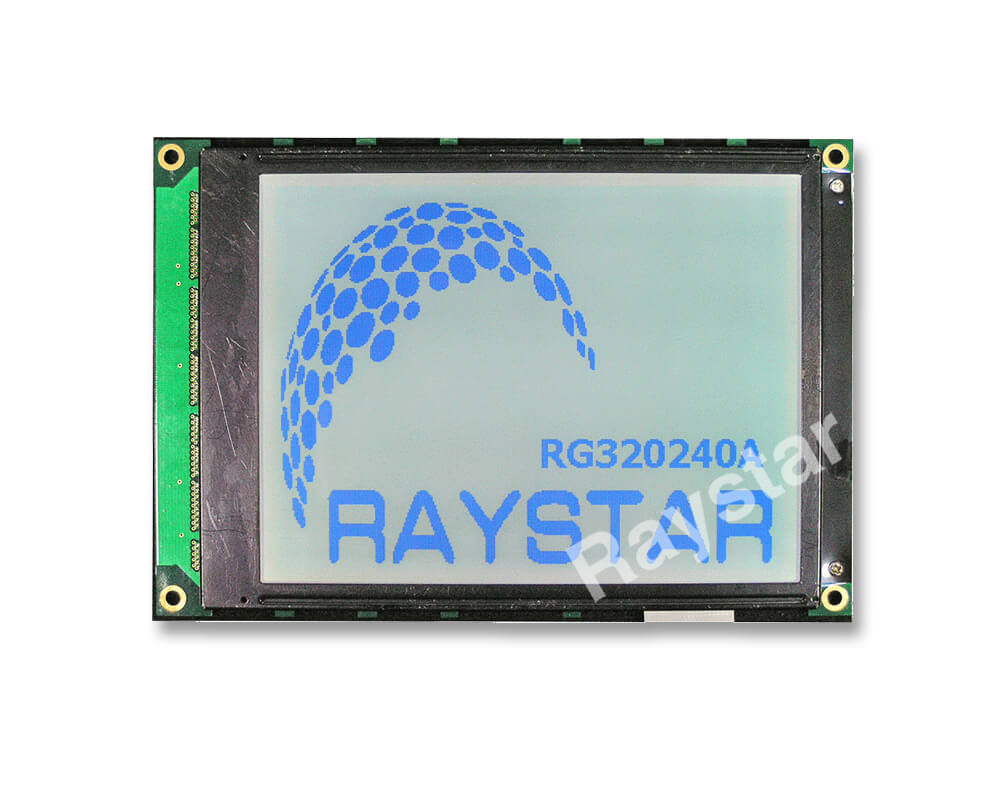

Structure COB
Size (Diagonal) 5.67 inch
Dot Matrix / Resolution 320 × 240 dots
Module Dimension 160.0 × 109.0 × 13.0 mm
Viewing Area 122.0 × 92.0 mm
Active Area 115.18 × 86.38 mm
Dot / Pixel Size 0.34 × 0.34 mm
Dot / Pixel Pitch 0.36 × 0.36 mm
